Scenario Class Reference

Scenario organization. More...

#include <scenario.h>

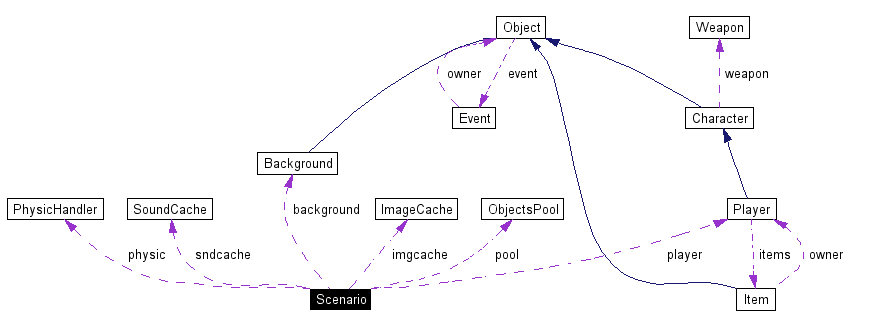

Collaboration diagram for Scenario:

[legend]List of all members.

Public Member Functions
	Scenario ()
	Creates a new scenario. To load a specific map, use loadMap(mapname).
Hit	checkPlace (const SDL_Rect &src, const SDL_Rect &dest) const
std::set< Character * >	getCharactersIn (Uint16 mask, const SDL_Rect &rect, bool touch=false, Uint16 radius=0, Uint16 dir=DIR_ALL) const
std::set< Object * >	getObjectsIn (Uint16 mask, const SDL_Rect &rect, bool touch=false, Uint16 radius=0, Uint16 dir=DIR_ALL) const
Object *	getObjectAt (Sint16 x, Sint16 y, Uint16 mask=ALL) const
	Returns the first found object at the given position.
Uint16	getDirection (const SDL_Rect &src, const SDL_Rect &dest) const
int	loadScenario (string scenarioname)
	Load a new scenario.
void	newMap (const ParameterMap &bg_parameters)
	Create a new empty map with the specified background.
int	loadMapBuf (string mapname)
	Used to load the map file into a buffer.
int	reloadMap ()
	Reload the map file using the buffered map file.
int	loadMap (string mapname)
	Loads and initializes the map data.
int	loadMap (Uint8 level=0)
void	loadNextMap ()
int	startScenario ()
void	winScenario ()
void	resetScenario ()
Public Attributes
Background *	background
	Background.
SDL_Rect *	area
	Size of the background (map area).
Player *	player
	Current player.
ImageCache *	imgcache
	Image Cache.
SoundCache *	sndcache
	Sound Cache.
ObjectsPool *	pool
	Object pool.
PhysicHandler *	physic
	Physic Handler.
bool	failed
	True if the mission failed.
bool	finnished
	True if the mission is finnished (suceeded or failed).
string	mapname
	Name of the current map file.
string	scenarioname
	Name of the scenario.
string	bgimage
	Name of the map background image.
std::vector< string >	mapbuf
Uint32	max_obj_num
	The number of created objects.
std::vector< string >	maps
std::vector< string >	playlist
Uint8	currentmap

---

Detailed Description

Scenario organization.

Loads the corresponding map data (objects) and performs location checks.

Remarks:

MAP FORMAT:

HeaderOption "parameters"

Background "parameters"

#ENDHEADER

"Object class name" "x position" "y position" "parameters"

The parameters depend on the object: Each object checks it's corresponding parameters.

The parameter format is like this:

option1=value1,option2=value2,...

A value may be a parameterlist of suboptions:

option1=subopt1=subval1:subopt2=subval2:...,option2=value2

Defaults:

x and y default to 0

Example:

Background image=background.bmp

#ENDHEADER

Teleporter 0 0 image=teleporter.bmp,exitx=20,exity=100,name=teleporter1

Todo:

Move the Caches into the current map as well?

---

Member Function Documentation

Hit Scenario::checkPlace (  const SDL_Rect &  src, const SDL_Rect &  dest )  const

Checks where the source rectangle overlaps the destination rectangle. Parameters: src  Source rectangle dest  Destination rectangle Returns: Hit Directions of overlapping. DIR_ALL if the destination rectangle is inside the source rectangle, NOTHING if the source rectangle is inside the destionation rectangle.

std::set<Character *> Scenario::getCharactersIn (  Uint16  mask, const SDL_Rect &  rect, bool  touch = false, Uint16  radius = 0, Uint16  dir = DIR_ALL )  const

Parameters: mask  Mask for the object types that this function should match (default: all Characters). rect  Base region of the target area that should be checked. touch  If true an touch (overlapping of area) is enough for a match, otherwise the center of the specified rectangle has to be inside the target. radius  This enlarges the base area by this amount into all specified directions (default: 0) dir  Search directions (default: all) Returns: A set of characters that are inside the enlarged source rectangle and that match the specified mask.

Uint16 Scenario::getDirection (  const SDL_Rect &  src, const SDL_Rect &  dest )  const

Returns the directions from the source rectangle to the destination rectangle Remarks: This may include an enlargment (eg. Olaf) Parameters: src  Source rectangle dest  Destination rectangle

int Scenario::loadMap (  string  mapname  )

Loads and initializes the map data. Parses the map file and tries to add the objects by using addObjectByName() Parameters: mapname  Map file name without the data directory in it Returns: 0 if a Background was found, -1 if not, -2 if the loading failed

---

The documentation for this class was generated from the following file:

• scenario.h

---
